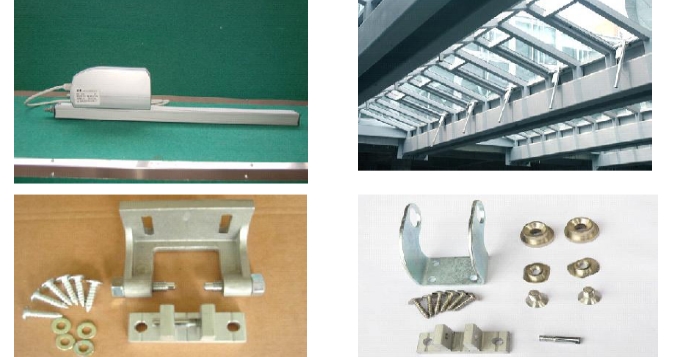

Rack actuator

Technical data's :

(1) Model : CG
(2) Stroke : from 50±3mm to 1000±3mm
(3) Voltage : 24VDC±15%, 230VAC±15%
(4) Max. Current : 0.2A (230VAC), 1.5A (24VDC)
(5) Power Consumption : 18W
(6) Use Cycle : 10000
(7) Max. Force : 800N

Details:

(1) Protection Grade : IP54
(2) It is the best choice of louver window.
(3) Many strokes are available.
(4) There is circuit of protect from electron overloaded inside, and
many sets of openers can connect drive machine.
(5) It conforms to 73/23LVD、89/336EMC of EU directive.
(6) Attain EN12101-2 certificate.

המנוע עמידי אש 300 מעלות 30 דקות לפי תקן אירופי חדש
Temperature resistance: 300° C for 30 minutes
(according to DIN EN 12101/2)
